Custom Made Solutions

Hardware can be adapted to meet the visual requirements of customers. More than a hundred sensors for various measurements and can be adapted to meet customer-specific requirements and situations. Hardware is made to meet the strictest standard depending on the operating environment (dust, humidity, water, etc.)

Concept and integration

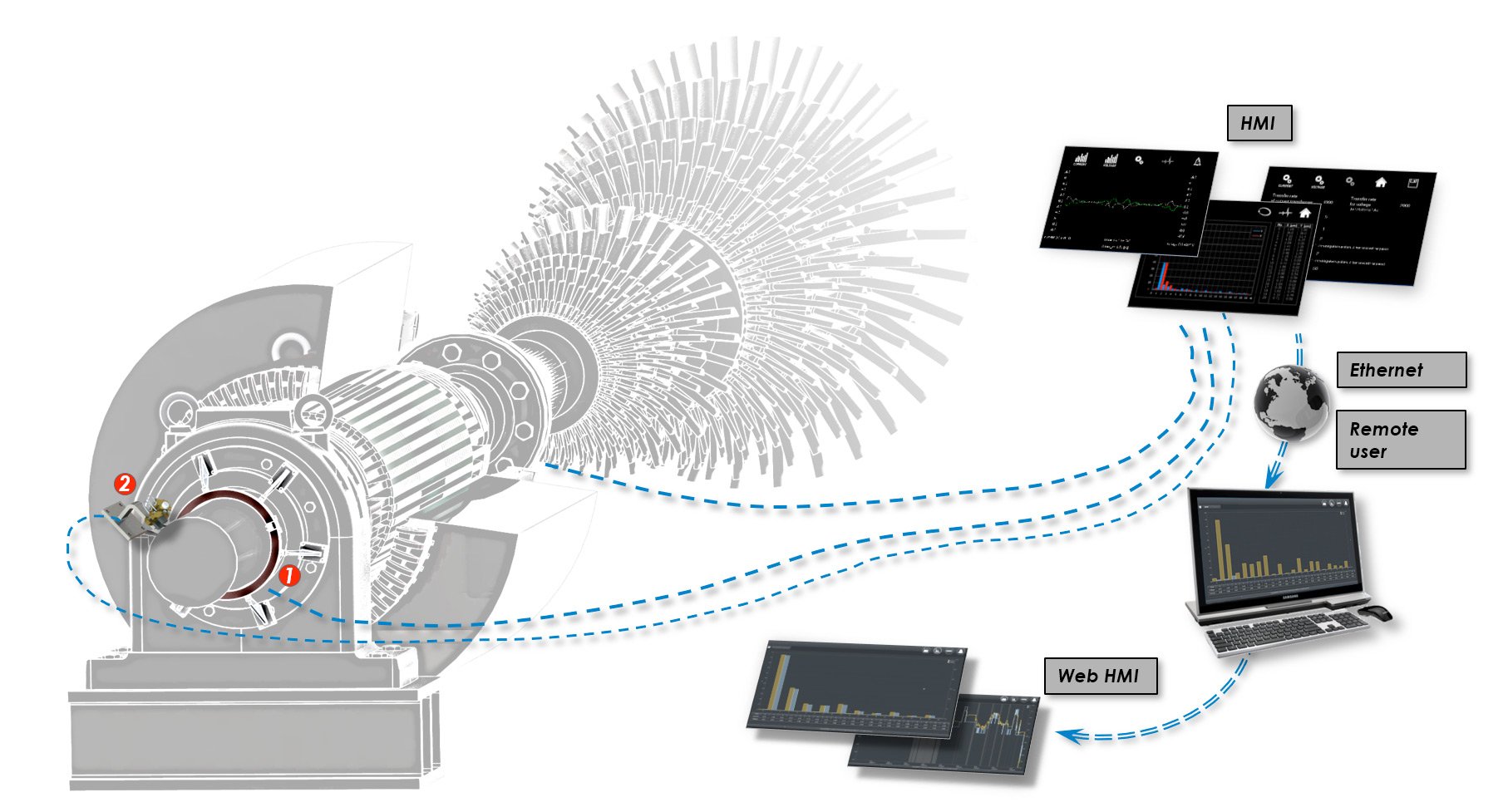

Operation panel – HMI with processing/protection unit (real-time processing, database, web server, HMI, inputs/outputs) through remote users and sensors.

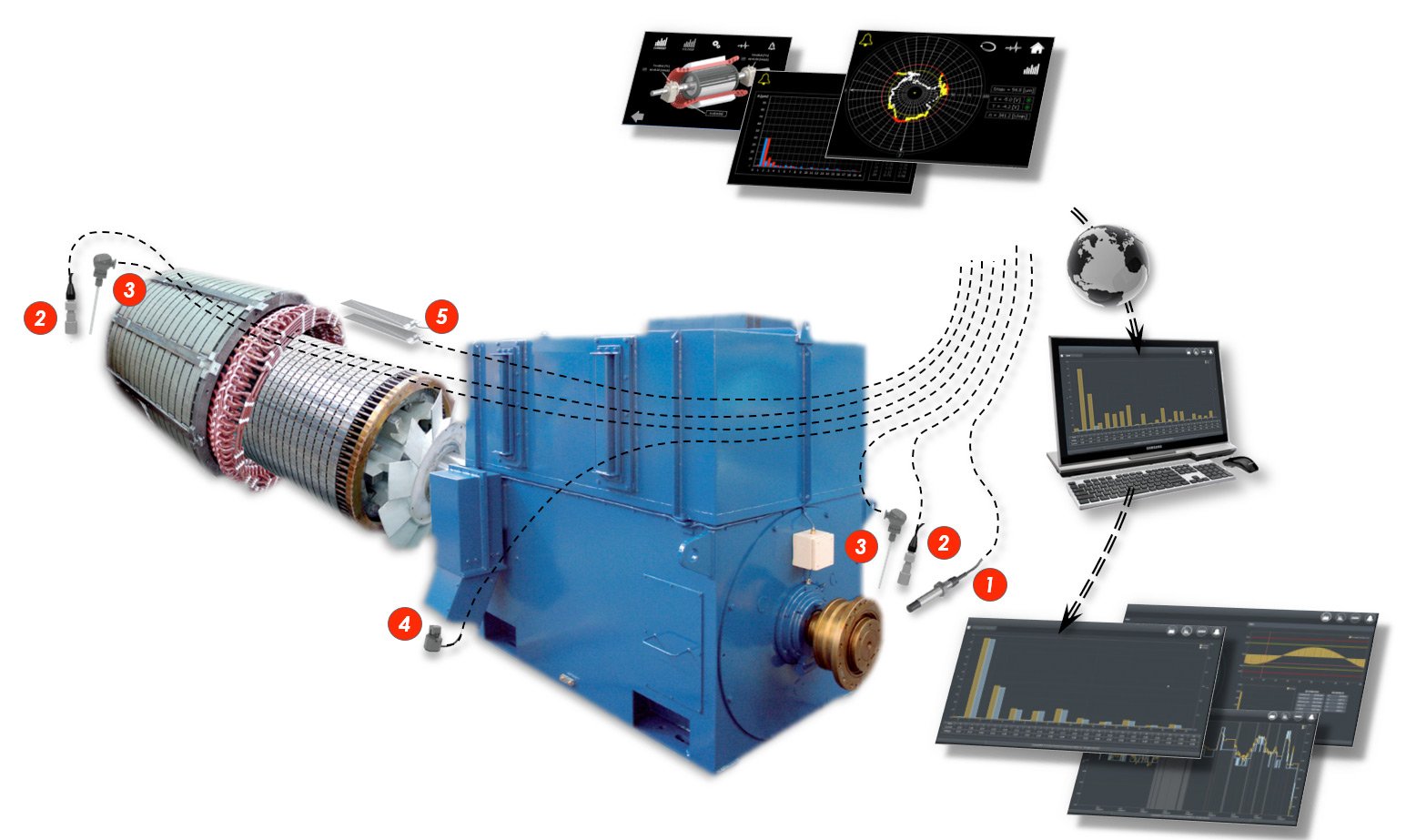

Sensors:

  1. Displacement sensor (bearing/shaft)
  2. Vibration sensor (bearing)
  3. Temperature sensor (bearing)
  4. Motor current sensor (connection box)
  5.  Magnetic field sensor (air gap)

Magnetic field asymmetry in the machine

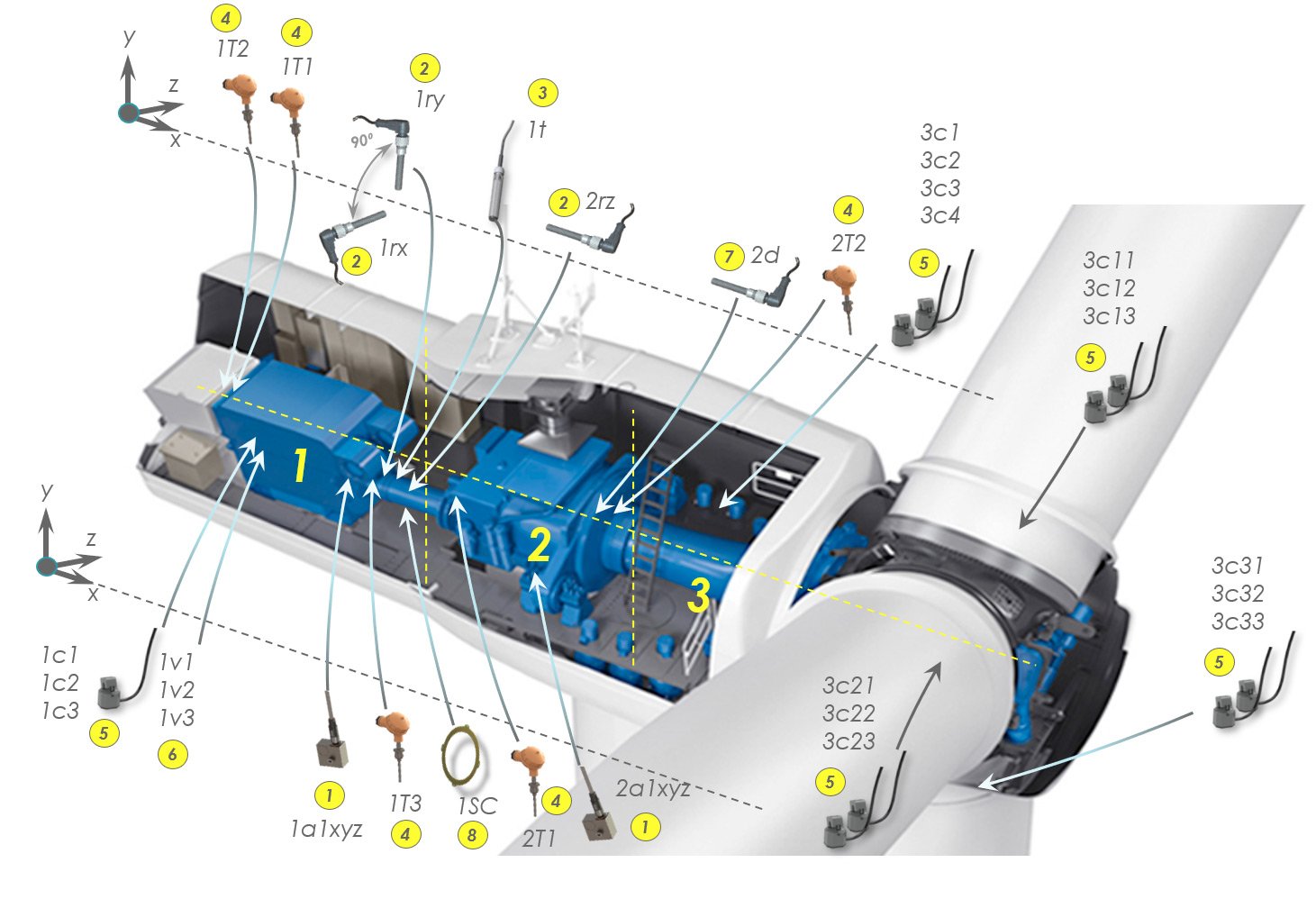

Operation panel – HMI with processing/protection unit (real-time processing, database, web server, HMI, inputs/outputs) through remote users and sensors.

Sensors:

  1. Absolute vibration
  2. Relative displacement
  3. Rotating speed
  4. Temperature
  5. Current
  6. Voltage
  7. Displacement
  8. Shaft current
  9. Process values

Concept and integration of Shaft Current and Voltage Protection

Magnetic field asymmetry in the machine produces a shaft voltage, which, depending on the type of machine, size and load, varies in amplitude and frequency composition. Low circuit impedance consisting of a shaft, bearing, oil film and other structural components, can cause shaft current flow which leads to bearing destruction.

Sensors:

  1. Absolute vibration
  2. Relative displacement
  3. Rotating speed
  4. Temperature
  5. Current
  6. Voltage
  7. Displacement
  8. Shaft current
  9. Process values
